Bad Fuel Pump Relay: Symptoms, Causes & Replacement Cost

The Short Answer

A bad fuel pump relay most often causes a complete no-start condition — the engine cranks but the fuel pump never primes — and it accounts for roughly 40% of all fuel delivery problems, yet the part itself costs less than $20 at retail.

Before you let a shop talk you into a $400–$600 fuel pump, spend five minutes checking this tiny electromagnetic switch. A lot of mechanics will tell you the same thing off the record.

What Does a Fuel Pump Relay Actually Do?

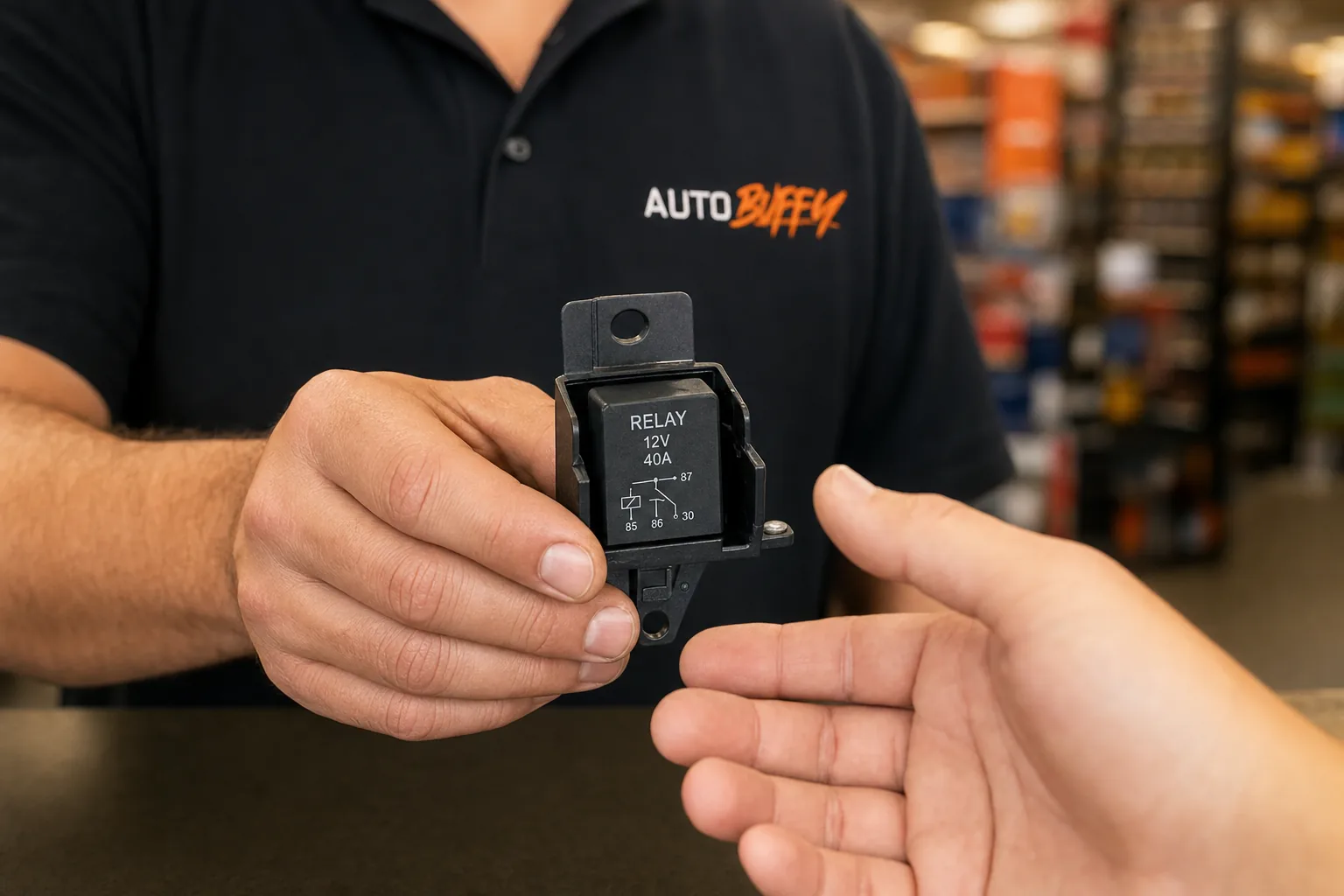

The relay is an electromagnetic switch. Your car's ECU sends a small control current through the relay's coil, which generates a magnetic field, closes a set of internal contacts, and allows full battery voltage to reach the fuel pump. It's the middleman between a low-current signal and a high-current pump motor.

When that switch fails — whether from heat damage, corroded contacts, or a failed internal coil — the fuel pump gets no power. No power, no fuel. No fuel, no start. It's that direct.

Fuel Pump Relay Symptoms: What to Watch For

1. No Fuel Pump Prime Sound

This is the most reliable test you can do right now without any tools. Turn your key to the 'on' position (don't crank). Listen near the fuel tank or from the driver's seat with the windows up. You should hear a faint whirring or hum for about one to two seconds — that's the pump priming the system.

No sound? The relay is your first suspect, not the pump. A dead relay means the pump never receives power, so it never makes noise.

2. Intermittent Stalling That Gets Worse When Warm

A relay with deteriorating contacts can work fine when cold, then drop the circuit once heat builds up in the engine bay. The pattern is telling: car starts fine in the morning, stalls after 20 minutes of driving, then won't restart for 10–15 minutes (until it cools). That thermal sensitivity is a relay hallmark.

3. Long Cranking Before Start

If the relay is partially failing, it might close the circuit slowly or only hold it weakly. The pump can't build full pressure quickly, so the engine takes three, four, five seconds of cranking before it catches. Most healthy fuel systems fire in under a second.

4. Sudden Stalling While Driving

A relay can fail entirely mid-drive, cutting pump power instantly. The engine doesn't sputter and fade — it just stops. This is a safety concern. Don't ignore stalling events, especially if they happen more than once.

5. Check Engine Light

Codes P0230 (Fuel Pump Primary Circuit Malfunction) and P0087 (Fuel Rail/System Pressure Too Low) can both trace back to the relay. That said, plenty of relay failures throw no code whatsoever. Don't wait for a light to confirm a diagnosis when the symptoms are already obvious.

What Causes Fuel Pump Relay Failure?

Heat is the number-one killer. The relay cycles through hot and cold thousands of times over a vehicle's life, and the internal contacts eventually corrode or the coil degrades. Electrical surges from jump-starting, vibration from rough roads, and moisture getting into the fuse box all accelerate the process.

With the average U.S. vehicle now at a record 12.8 years old and 289 million cars on the road, these age-related electrical failures are happening more often than ever. Relays aren't wear items anyone tracks — they just quietly fail one day.

How to Diagnose a Bad Fuel Pump Relay in 10 Minutes

Step 1 — Find Your Relay

Check the fuse box diagram (printed inside the cover or in your owner's manual). Look for labels like "FP Relay," "Fuel Pump," or "EFI." Most vehicles have the relay in the under-hood fuse box; some put it under the dash.

Step 2 — The Swap Test

This is the fastest free test available. Find an identical relay in your fuse box — horn relays, AC relays, and fuel pump relays are often the same part number. Swap them. Try to start the car. If it fires right up, you found your problem for the cost of zero dollars.

Step 3 — Listen for the Prime

Replace the suspect relay with a known-good unit and cycle the key. Hear the pump hum now? Relay was the issue. Still silent? Start looking at the fuse, the pump wiring, or the pump itself.

Step 4 — Check for Codes

Scan for DTCs before and after the swap. P0230, P0627, and P0087 are the codes most directly tied to fuel pump circuit issues. Cross-reference with symptoms to build a complete picture.

Fuel Pump Relay Replacement Cost: What You'll Actually Pay

Here's the honest breakdown:

RepairPal's current data puts the typical professional job at $41–$61 in labor with parts around $47. That's fair for most shops. Dealership pricing can creep higher depending on how they source the part.

My honest opinion: this is the one repair where DIY saves you more money per minute of effort than almost anything else on a car. Fifteen minutes of your time and $20 versus $150 at a shop — the math is obvious.

What to Look for in a Replacement Relay

When shopping for a fuel pump relay, you want a quality electrical component from a brand that backs its parts with meaningful coverage — not the cheapest unbranded unit on the shelf. That matters a lot when you're buying something as failure-sensitive as a relay. Use the part finder below to pull up the relays that fit your exact vehicle so you can compare options and today's pricing.

Avoid the cheapest unbranded options. A relay that fails six months later costs you another $150 in shop labor to diagnose and replace. Spend a few extra dollars on a quality part the first time.

Use the finder below to confirm exact fitment for your year, make, and model — and get today's pricing.

Can a Bad Relay Damage the Fuel Pump?

Not directly in the way that, say, running a pump dry would. But a relay with intermittent contact can cause the pump to receive fluctuating voltage, which adds stress over time. The bigger risk is misdiagnosis — replacing an expensive fuel pump when the relay was the actual problem all along. That scenario plays out constantly in shops and in DIY garages.

Always eliminate the relay first. Always.
