Dodge Dakota Motor Mount Symptoms and Replacement Cost

The Short Answer

A failing Dodge Dakota motor mount typically shows up as a hard clunk under acceleration, coarse vibration through the bench seat or floor, or visible engine lurch when shifting — and total shop replacement cost runs $585–$765 for engine mounts or $201–$253 for the transmission mount, parts and labor included.

What Does a Motor Mount Actually Do?

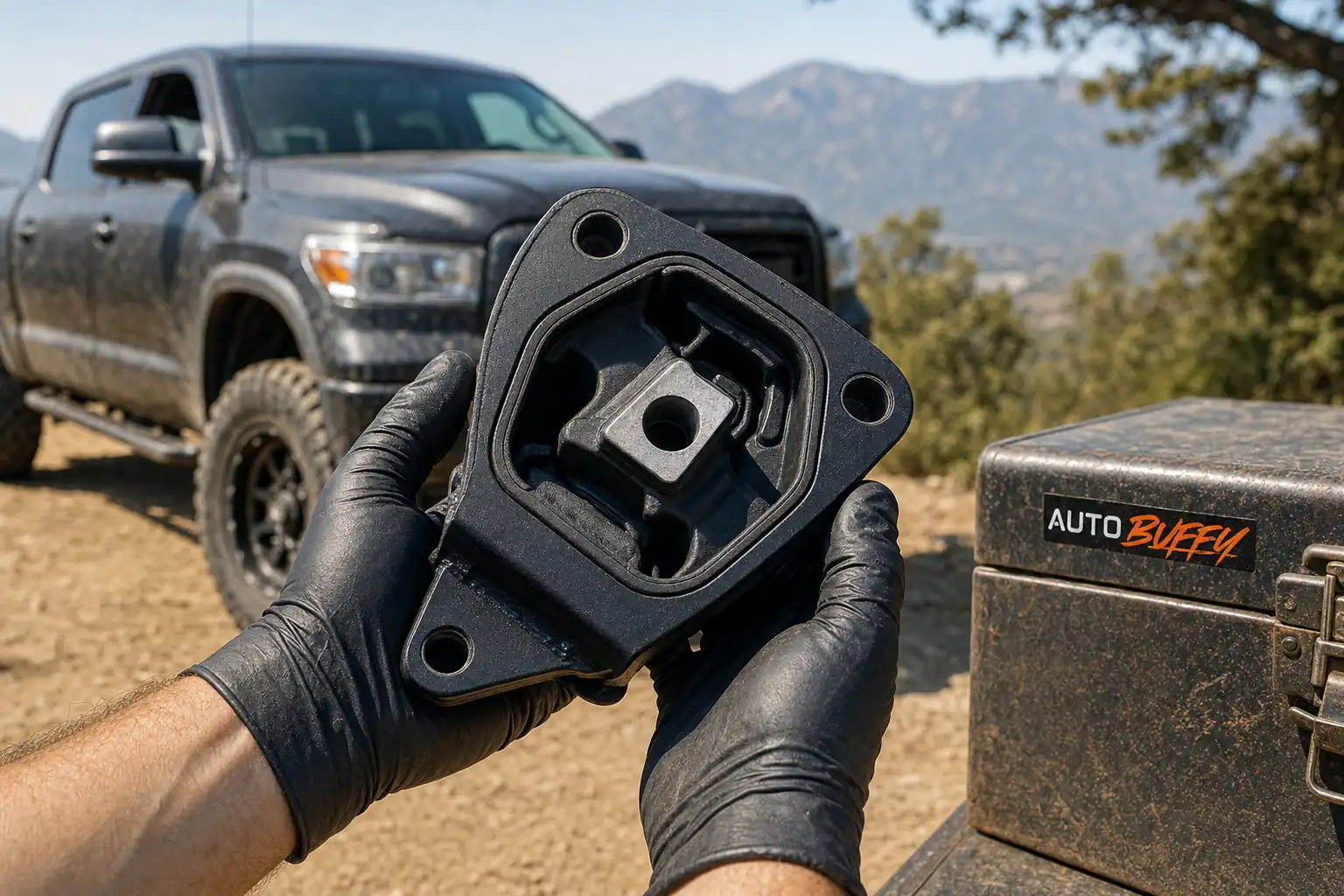

Motor mounts — sometimes called engine mounts — are the rubber-and-steel brackets that bolt your engine (and transmission) to the truck's frame. They hold the drivetrain in place and absorb the vibration and torque the engine produces constantly. When the rubber inside cracks, collapses, or separates from its steel housing, it can't do either job.

The Dodge Dakota ran through three distinct generations from 1987 through 2011 in the U.S. The final model year was sold as the Ram Dakota after Ram became its own brand, so technically the last ones didn't wear a Dodge badge. Across all those years and engine families — various inline-fours, V6s, the 4.7L V8, and the 5.9L Magnum V8 — motor mount design and count varied. Your exact year, engine, and 2WD/4WD configuration matter when you're ordering parts. Guessing is how people end up with the wrong kit.

Dodge Dakota Mount Layout: What's Actually Under the Hood

The Dakota is a truck-based, body-on-frame platform, which changes how mounts work compared to a front-wheel-drive car. The engine sits in a traditional longitudinal position, with mounts on both sides of the block and a separate transmission mount further back in the drivetrain. On 4WD models, packaging around the front axle affects access significantly.

Note: The strut mount is a suspension component, not an engine mount — but it's included in Westar's Dakota coverage and produces symptoms that can be confused with engine mount failure. If you hear clunking over bumps that doesn't follow throttle application, the strut mount is worth inspecting separately.

Which Dodge Dakota Years and Engines Fail Most

Westar's catalog shows the deepest coverage for the 2000–2003 model years and the 1994–1995 model years — both periods when the Dakota was offered with the widest range of engine and transmission combinations. More variants in production typically means more failure data, and more owner complaints, over time.

Second-generation trucks (1997–2004) are the most commonly discussed in owner forums for mount wear. The 4.7L V8 introduced in 2000 — a significant powertrain update for the Dakota — produces more torque than the V6s it partially replaced, and that extra torque load accelerates rubber fatigue in the engine mounts. Trucks from this era with automatic transmissions and 4WD seem to show up most often.

Late first-generation trucks (1994–1996) with the 5.9L Magnum V8 are also worth watching. That engine was never exactly a smooth-idler, and the combination of displacement and truck duty cycles is hard on rubber isolators.

Third-generation trucks (2005–2011) have a shorter service history simply because they're newer, but trucks in this range approaching 150,000+ miles are starting to show up in shops with mount wear — especially the automatic transmission mount on tow-equipped configurations.

If your Dakota is past 100,000 miles and you've never inspected or replaced the mounts, consider them suspect regardless of which generation you own. I'd put the odds of at least one compromised mount above 70% once you cross 120,000 miles on an original rubber set.

Five Dodge Dakota-Specific Motor Mount Symptoms

1. Hard Clunk When You Snap the Throttle From a Stop

The Dakota's cab-on-frame construction transfers noise very directly into the cabin. When a mount is collapsed, the engine rocks against its limit under torque load, and that contact produces a sharp thud you feel through the floor and seat. It's particularly obvious from a rolling stop — gas pedal in, engine surges, then clunk. This is the symptom Dakota owners describe most consistently.

2. Coarse Vibration Through the Bench Seat and Floor at Idle

Unlike a car body, the Dakota's truck cab sits directly on frame rails that connect to the engine cradle. A failed mount puts raw engine vibration onto the frame with almost nothing to filter it. The result: a coarse, buzzing idle vibration you feel more in the floor and seat than the steering wheel — different in character from tire imbalance or worn U-joints, which show up mostly at speed.

3. Clunk When Shifting Into Drive or Reverse From Park

This is especially pronounced on Dakota trucks with the 4.7L or 5.9L engines. Selecting a gear creates a torque reaction that immediately loads the mounts. With the mount collapsed, the engine rocks far enough to contact the frame or surrounding hardware. The thud is loud enough that some owners initially think it's a transmission problem — but the mount is the far more common cause.

4. Exhaust Rattle or New Heat Marks From a Shifted Engine

A sagging engine on a failed mount pulls the exhaust manifold and flex pipe with it. On V8 Dakota trucks, the exhaust routing runs close to the firewall and frame; even a small positional shift creates contact points that rattle, or areas where exhaust heat transfers to components it shouldn't reach. If you're chasing an exhaust rattle that appeared alongside vibration and clunking, check the mounts before touching the exhaust system.

5. Steering Groan on Turn-in (Strut Mount — Don't Confuse the Two)

If the noise and harshness appear over bumps or during slow-speed parking-lot maneuvers rather than under engine load, the suspension strut mount may be the culprit rather than the engine mounts. Westar covers strut mounts for the Dakota as well. A seized strut mount bearing produces a low groan when you turn the wheel — easy to misdiagnose as a steering problem if you don't know to look for it.

Dodge Dakota Motor Mount Replacement Cost

The $585–$765 range covers most Dakota engine mount configurations at a typical shop. Labor rates vary by region — a shop in rural Oklahoma charges less per hour than one in Los Angeles. On 4WD trucks, access around the front axle adds time, so expect the higher end of that range or a bit above for 4WD configurations.

Should you do the full set at once? Almost always yes if mileage is high. The mechanic already has the engine supported and the truck in the air. Adding the remaining mounts to the same visit costs a fraction of what a second appointment would — and all original rubber mounts age at roughly the same rate.

Choosing the Right Westar Kit for Your Dakota

Westar focuses specifically on engine and transmission mounts rather than spreading across thousands of unrelated part categories. For the Dodge Dakota, they cover model years 1987–2010 with 51 distinct SKUs across that range. Coverage is deepest for the 2000–2003 and 1994–1995 model years, which reflects the sheer number of engine and transmission combinations Dakota was offered with during those periods.

Kits range from targeted two- or three-piece engine mount sets to comprehensive packages covering engine, transmission, and all isolator positions. The right kit depends on your year, engine, and drivetrain. Don't guess — use the finder below.

Can You Replace a Dakota Motor Mount Yourself?

Some positions, yes. The rear transmission mount and upper engine isolators on 2WD models are typically reachable with a floor jack, jack stands, and basic hand tools. You'll want a wood block under the oil pan while the mount is unbolted to keep the engine from dropping.

4WD trucks are harder. Front axle components reduce clearance around the lower engine mounts, and you may need an engine support bar to hold the engine safely while you work beneath it. If you own the right tools and are comfortable with engine support procedures, it's a genuine weekend job. If not, the labor cost is worth paying.

Sources

• RepairPal engine mount replacement cost estimates for Dodge Dakota
• Westar catalog data: 1987–2010 coverage, 51 SKUs, five mount types
• Dodge Dakota production history: model years 1987–2011 (U.S.)
