Part Number: 28310
Schrader®

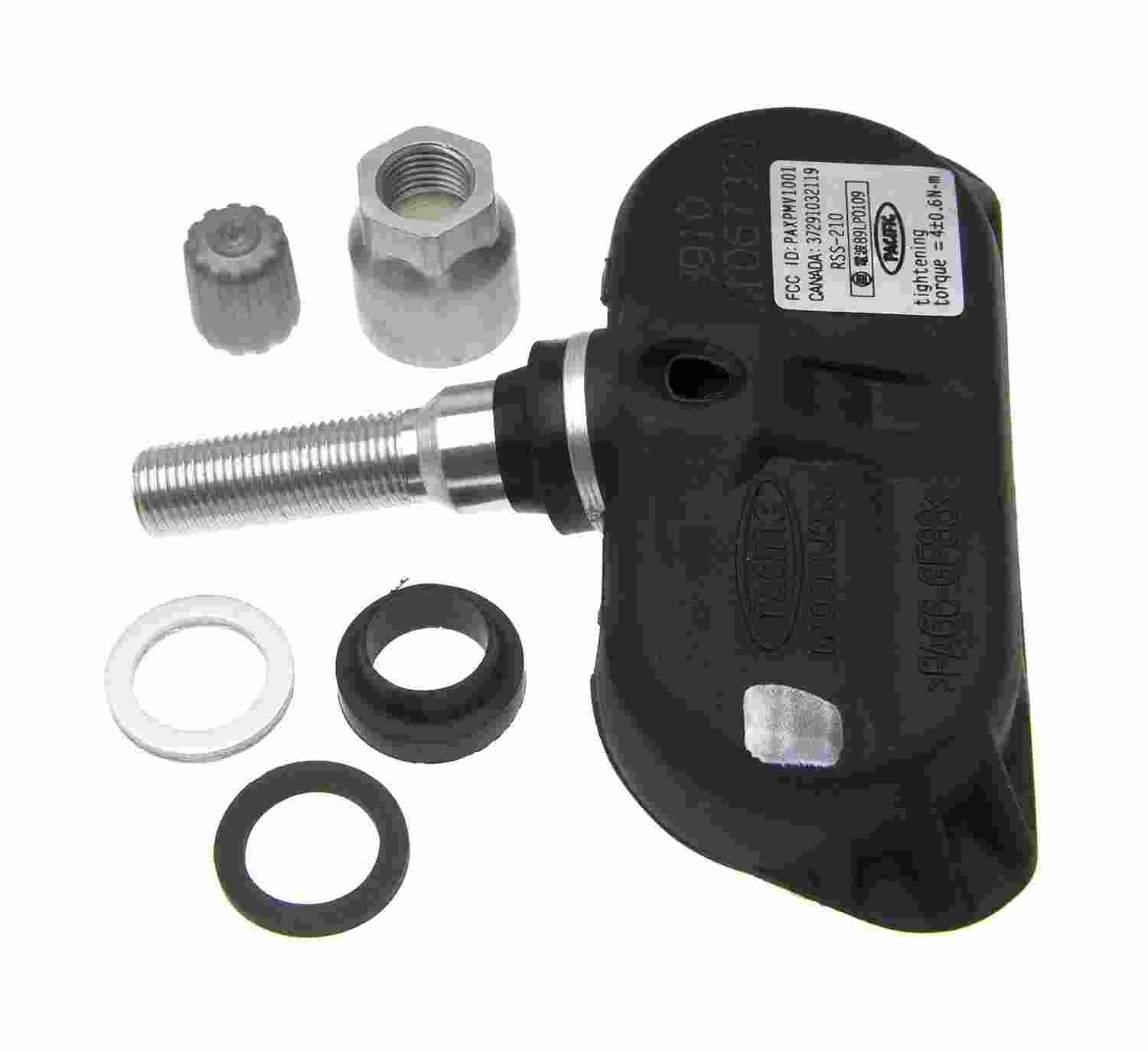

Schrader Tire Pressure Monitoring System (TPMS) Sensor 28310
● Out of stock
Qty/Vehicle: 1
Verified to fit 18 vehicles
| Vehicle | Trim | Engine | Notes |
|---|---|---|---|
| 2018 Alfa Romeo Giulia | — | L4 2.0L | Supersession (ACES) Replaced by 28325; Mounting Method: Clamp-in; Torque: Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm; Max Speed Rating: 130; Max Pressure Rating: 102; Frequency: 315.0 MHz; Housing Material: Plastic; With Mounting Hardware; Pre-Programmed; Not Programmable; Valve Included; Valve Cap Not Included; Valve Core Material: Nickel Plated; Valve Material: Aluminum; Valve Color: Silver; Valve Stem Not Included; Washer Not Included; Includes 1 TPMS sensor w/ nut; 28310 - TPMS Sensor; Pack of 1 |
| 2018 Alfa Romeo Giulia | — | L4 2.0L | Supersession (ACES) Replaced by 28325; Mounting Method: Clamp-in; Torque: Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm; Max Speed Rating: 130; Max Pressure Rating: 102; Frequency: 315.0 MHz; Housing Material: Plastic; With Mounting Hardware; Pre-Programmed; Not Programmable; Valve Included; Valve Cap Not Included; Valve Core Material: Nickel Plated; Valve Material: Aluminum; Valve Color: Silver; Valve Stem Not Included; Washer Not Included; Includes 1 TPMS sensor w/ nut; Quantity Included: 1 |
| 2018 Alfa Romeo Giulia | — | V6 2.9L | Supersession (ACES) Replaced by 28325; Mounting Method: Clamp-in; Torque: Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm; Max Speed Rating: 130; Max Pressure Rating: 102; Frequency: 315.0 MHz; Housing Material: Plastic; With Mounting Hardware; Pre-Programmed; Not Programmable; Valve Included; Valve Cap Not Included; Valve Core Material: Nickel Plated; Valve Material: Aluminum; Valve Color: Silver; Valve Stem Not Included; Washer Not Included; Includes 1 TPMS sensor w/ nut; 28310 - TPMS Sensor; Pack of 1 |
| 2018 Alfa Romeo Giulia | — | V6 2.9L | Supersession (ACES) Replaced by 28325; Mounting Method: Clamp-in; Torque: Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm; Max Speed Rating: 130; Max Pressure Rating: 102; Frequency: 315.0 MHz; Housing Material: Plastic; With Mounting Hardware; Pre-Programmed; Not Programmable; Valve Included; Valve Cap Not Included; Valve Core Material: Nickel Plated; Valve Material: Aluminum; Valve Color: Silver; Valve Stem Not Included; Washer Not Included; Includes 1 TPMS sensor w/ nut; Quantity Included: 1 |
| 2017 Alfa Romeo Giulia | — | L4 2.0L | Supersession (ACES) Replaced by 28325; Mounting Method: Clamp-in; Torque: Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm; Max Speed Rating: 130; Max Pressure Rating: 102; Frequency: 315.0 MHz; Housing Material: Plastic; With Mounting Hardware; Pre-Programmed; Not Programmable; Valve Included; Valve Cap Not Included; Valve Core Material: Nickel Plated; Valve Material: Aluminum; Valve Color: Silver; Valve Stem Not Included; Washer Not Included; Includes 1 TPMS sensor w/ nut; Quantity Included: 1 |
| 2017 Alfa Romeo Giulia | — | L4 2.0L | Supersession (ACES) Replaced by 28325; Mounting Method: Clamp-in; Torque: Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm; Max Speed Rating: 130; Max Pressure Rating: 102; Frequency: 315.0 MHz; Housing Material: Plastic; With Mounting Hardware; Pre-Programmed; Not Programmable; Valve Included; Valve Cap Not Included; Valve Core Material: Nickel Plated; Valve Material: Aluminum; Valve Color: Silver; Valve Stem Not Included; Washer Not Included; Includes 1 TPMS sensor w/ nut; 28310 - TPMS Sensor; Pack of 1 |
| 2017 Alfa Romeo Giulia | — | V6 2.9L | Supersession (ACES) Replaced by 28325; Mounting Method: Clamp-in; Torque: Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm; Max Speed Rating: 130; Max Pressure Rating: 102; Frequency: 315.0 MHz; Housing Material: Plastic; With Mounting Hardware; Pre-Programmed; Not Programmable; Valve Included; Valve Cap Not Included; Valve Core Material: Nickel Plated; Valve Material: Aluminum; Valve Color: Silver; Valve Stem Not Included; Washer Not Included; Includes 1 TPMS sensor w/ nut; 28310 - TPMS Sensor; Pack of 1 |
| 2017 Alfa Romeo Giulia | — | V6 2.9L | Supersession (ACES) Replaced by 28325; Mounting Method: Clamp-in; Torque: Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm; Max Speed Rating: 130; Max Pressure Rating: 102; Frequency: 315.0 MHz; Housing Material: Plastic; With Mounting Hardware; Pre-Programmed; Not Programmable; Valve Included; Valve Cap Not Included; Valve Core Material: Nickel Plated; Valve Material: Aluminum; Valve Color: Silver; Valve Stem Not Included; Washer Not Included; Includes 1 TPMS sensor w/ nut; Quantity Included: 1 |
| 2006 Lexus SC430 | — | V8 4.3L | Supersession (ACES) Replaced by 28325; Mounting Method: Clamp-in; Torque: Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm; Max Speed Rating: 130; Max Pressure Rating: 102; Frequency: 315.0 MHz; Housing Material: Plastic; With Mounting Hardware; Pre-Programmed; Not Programmable; Valve Included; Valve Cap Not Included; Valve Core Material: Nickel Plated; Valve Material: Aluminum; Valve Color: Silver; Valve Stem Not Included; Washer Not Included; Includes 1 TPMS sensor w/ nut; 28310 - TPMS Sensor; Pack of 1 |
| 2006 Lexus SC430 | — | V8 4.3L | Supersession (ACES) Replaced by 28325; Mounting Method: Clamp-in; Torque: Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm; Max Speed Rating: 130; Max Pressure Rating: 102; Frequency: 315.0 MHz; Housing Material: Plastic; With Mounting Hardware; Pre-Programmed; Not Programmable; Valve Included; Valve Cap Not Included; Valve Core Material: Nickel Plated; Valve Material: Aluminum; Valve Color: Silver; Valve Stem Not Included; Washer Not Included; Includes 1 TPMS sensor w/ nut; Quantity Included: 1 |
| 2005 Lexus SC430 | — | V8 4.3L | Supersession (ACES) Replaced by 28325; Mounting Method: Clamp-in; Torque: Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm; Max Speed Rating: 130; Max Pressure Rating: 102; Frequency: 315.0 MHz; Housing Material: Plastic; With Mounting Hardware; Pre-Programmed; Not Programmable; Valve Included; Valve Cap Not Included; Valve Core Material: Nickel Plated; Valve Material: Aluminum; Valve Color: Silver; Valve Stem Not Included; Washer Not Included; Includes 1 TPMS sensor w/ nut; Quantity Included: 1 |
| 2005 Lexus SC430 | — | V8 4.3L | Supersession (ACES) Replaced by 28325; Mounting Method: Clamp-in; Torque: Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm; Max Speed Rating: 130; Max Pressure Rating: 102; Frequency: 315.0 MHz; Housing Material: Plastic; With Mounting Hardware; Pre-Programmed; Not Programmable; Valve Included; Valve Cap Not Included; Valve Core Material: Nickel Plated; Valve Material: Aluminum; Valve Color: Silver; Valve Stem Not Included; Washer Not Included; Includes 1 TPMS sensor w/ nut; 28310 - TPMS Sensor; Pack of 1 |
| 2004 Lexus SC430 | — | V8 4.3L | Supersession (ACES) Replaced by 28325; Mounting Method: Clamp-in; Torque: Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm; Max Speed Rating: 130; Max Pressure Rating: 102; Frequency: 315.0 MHz; Housing Material: Plastic; With Mounting Hardware; Pre-Programmed; Not Programmable; Valve Included; Valve Cap Not Included; Valve Core Material: Nickel Plated; Valve Material: Aluminum; Valve Color: Silver; Valve Stem Not Included; Washer Not Included; Includes 1 TPMS sensor w/ nut; 28310 - TPMS Sensor; Pack of 1 |
| 2004 Lexus SC430 | — | V8 4.3L | Supersession (ACES) Replaced by 28325; Mounting Method: Clamp-in; Torque: Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm; Max Speed Rating: 130; Max Pressure Rating: 102; Frequency: 315.0 MHz; Housing Material: Plastic; With Mounting Hardware; Pre-Programmed; Not Programmable; Valve Included; Valve Cap Not Included; Valve Core Material: Nickel Plated; Valve Material: Aluminum; Valve Color: Silver; Valve Stem Not Included; Washer Not Included; Includes 1 TPMS sensor w/ nut; Quantity Included: 1 |
| 2003 Lexus SC430 | — | V8 4.3L | Supersession (ACES) Replaced by 28325; Mounting Method: Clamp-in; Torque: Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm; Max Speed Rating: 130; Max Pressure Rating: 102; Frequency: 315.0 MHz; Housing Material: Plastic; With Mounting Hardware; Pre-Programmed; Not Programmable; Valve Included; Valve Cap Not Included; Valve Core Material: Nickel Plated; Valve Material: Aluminum; Valve Color: Silver; Valve Stem Not Included; Washer Not Included; Includes 1 TPMS sensor w/ nut; 28310 - TPMS Sensor; Pack of 1 |
BrandSchrader
Part Number28310
Part TypeTire Pressure Monitoring System (TPMS) Sensor
ConditionNew
Core MaterialNickel-Plated Brass
Grommets IncludedYes
Hardware IncludedYes
Housing MaterialPlastic
Mounting Hardware IncludedYes
Outside Diameter3.472 IN
Sealing Surface TypeNitrile
Shaft Diameter2.835 IN
Valve Cap IncludedYes
Valve MaterialAluminum
Valve Stem IncludedYes
Valve Stem MaterialMetal
Washer IncludedYes
Attachment MethodClamp-In
California Prop 65 Warning Label (Text)WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects and other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Frequency315
Frequency (Mhz)315 MHz
Manufacturer Warranty2 Years
Mounting LocationWheel
Mounting MethodClamp-in
Package ContentsTransmitter, Ni plated valve core (installed), plastic cap (installed), aluminum nut
Package Quantity1
ProgrammableNo
Programmed/ProgrammableProgrammed
Recommended Torque (In/Lbs)35.4 Inch/Lbs.
Recommended Torque (N-M)4 N-m
Valve ColorSilver
Width0.315 IN
WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, known to the State of California to cause cancer and reproductive harm. Service the vehicle in a well-ventilated area, wear gloves, and wash your hands. See www.P65Warnings.ca.gov/motor-vehicle-parts
WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which are known to the State of California to cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information see www.P65Warnings.ca.gov/motor-vehicle-parts
