$306.95

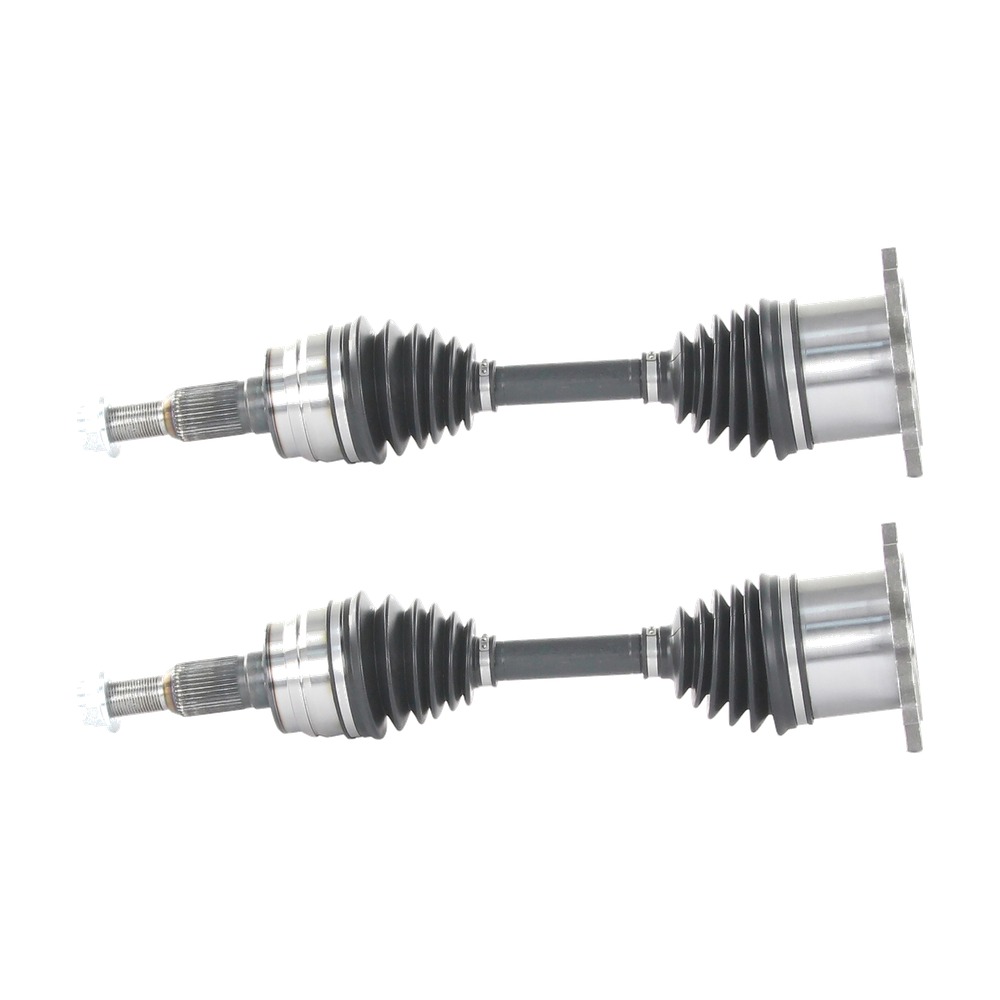

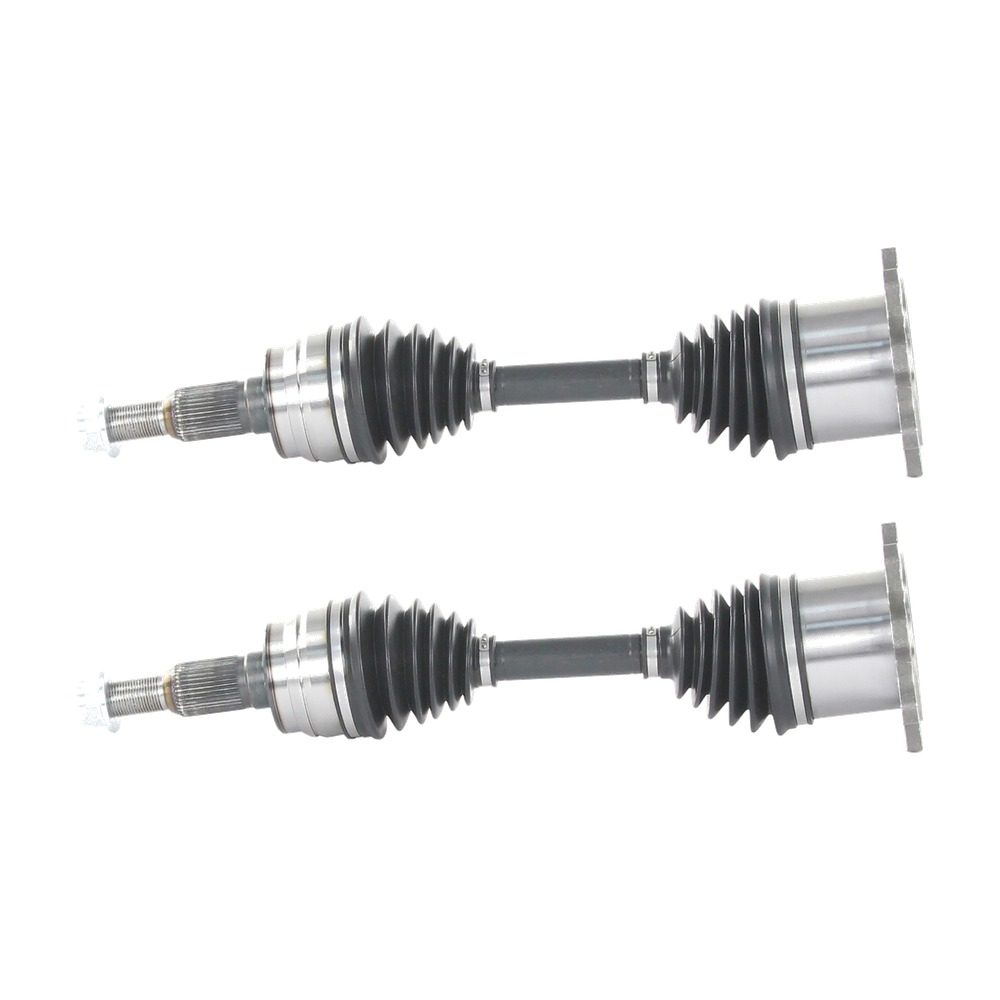

TrakMotive Front CV Axle Assembly Kit - 2 Piece Set
Part # KAB-703521
2 Piece Set
Click to expand
2 Piece Set
1 / 4
For Shops & FleetsBuy for your business and
start saving today.
Your Pro Price
$276.25Members
Approved in minutes · No fees
TrakMotive Front CV Axle Assembly Kit - 2 Piece Set
20% OFF$30695
$383.95Save $77.00•In Stock•
FREE Same Day ShippingAs low as $76.74/mo with PayPal
1
Estimated Delivery by calculating...
Calculating shipping time...
Ships to
Verified Fitment
Parts matched to your vehicle.
Free Fast Delivery
Free shipping included on this item.
Simple Returns
30-day return policy.
Top Brands
OEM & aftermarket names you trust.
Millions of Parts
Maintenance items to complete assemblies.
Everyday Low Prices
Trusted since 2019 — quality at fair prices.
Vehicle Compatibility
No compatibility data available for this part.
What's Included
2 pieces total in this kit — each card below shows exactly how many of that part is included. Questions? Call 888.477.2530
1 Piece
Front CV Axle
1 Piece
Front CV Axle
Specifications
Brand: TrakMotive
Part Number: KAB-703521
Part Type: CV Axle Shaft Kit
Condition: New
Grease: High-Temperature CV Joint Grease
Pieces: 2
Material: Heat-Treated Alloy Steel
Position: Front
Joint Type: Rzeppa (Outer) / Tripod (Inner)
Boot Material: Thermoplastic (TPE)
OE Replacement: Yes
Abs Tone Ring Included: No
Axle Nut Head Type: Hex
Axle Nut Included: Yes
Axle Nut Length (In): 1.5
Axle Nut Length (Mm): 38
Axle Nut Locking Type: Self-Lock
Grade Type: Premium
Inboard Joint Boot Material: Neoprene
Inboard Joint Type: Flange
Number Of Inboard Splines: 0
Number Of Outboard Splines: 36
Outboard Joint Boot Material: Neoprene
Outboard Joint Type: Conventional
Overall Compressed Length (In): 23.03
Overall Compressed Length (Mm): 585
Abs Ring Tooth Count: 0
Axle Nut Height (In): .86
Axle Nut Height (Mm): 22
Axle Nut Hex Size (In): 1.29
Axle Nut Hex Size (Mm): 33
Axle Nut Socket Size: 33
Axle Nut Thread Size: M27x2
California Proposition 65 Required: N
Number Of Bolt Holes: 0
Number Of Inboard Joint Bolt Holes: 0
Number Of Inboard Shaft Bolts: 0
Number Of Outboard Joint Bolt Holes: 0
Number Of Outboard Shaft Bolts: 0
Quantity In Kit: 2
Frequently Asked Questions
We're always here to help. If you can't find your answer, ask Rydon - our AI assistant will help you out.
What's included in this CV axle kit?
This kit includes 2 TrakMotive CV axle assemblies for the front of your vehicle. Each axle is a complete assembly with the inner and outer CV joints, boots, and grease pre-installed.
Should I replace CV axles in pairs?
Yes. When one CV axle fails, the other side has the same wear and mileage. Replacing both ensures balanced performance, eliminates a second repair, and saves on labor costs since the work area is already accessible.
How do I know my CV axle needs replacement?
Common symptoms include clicking or popping noises when turning, vibration during acceleration, grease on the inside edge of tires, or visible damage to the CV boot. A torn boot will lead to joint failure if not addressed.
Are TrakMotive CV axles OE quality?
Yes. TrakMotive (formerly SurTrack) CV axles are built to meet or exceed OE specifications. They use premium materials including heat-treated alloy steel, high-temp grease, and thermoplastic boots for long service life.
Can I install CV axles myself?
CV axle replacement is a moderate DIY job. You'll need basic hand tools, a torque wrench, and a jack with stands. The job typically takes 1-2 hours per side. A new axle nut is recommended for each side.
Product Specifications
Brand
TrakMotive
Part Type
CV Axle Shaft Kit
Pieces
2
Position
Front
Part Number
KAB-703521
Grease
High-Temperature CV Joint Grease
Material
Heat-Treated Alloy Steel
Joint Type
Rzeppa (Outer) / Tripod (Inner)
BrandTrakMotive (formerly SurTrack)
GreaseHigh-Temperature CV Joint Grease
Pieces2
MaterialHeat-Treated Alloy Steel
PositionFront
Joint TypeRzeppa (Outer) / Tripod (Inner)
Boot MaterialThermoplastic (TPE)
O E ReplacementYes
Abs Tone Ring IncludedNo
Axle Nut Head TypeHex
Axle Nut IncludedYes
Axle Nut Length (In)1.5
Axle Nut Length (Mm)38
Axle Nut Locking TypeSelf-Lock
Grade TypePremium
Inboard Joint Boot MaterialNeoprene
Inboard Joint TypeFlange
Number Of Inboard Splines0
Number Of Outboard Splines36
Outboard Joint Boot MaterialNeoprene
Outboard Joint TypeConventional
Overall Compressed Length (In)23.03
Overall Compressed Length (Mm)585
Abs Ring Tooth Count0
Axle Nut Height (In).86
Axle Nut Height (Mm)22
Axle Nut Hex Size (In)1.29
Axle Nut Hex Size (Mm)33
Axle Nut Socket Size33
Axle Nut Thread SizeM27x2
California Proposition 65 RequiredN
Number Of Bolt Holes0
Number Of Inboard Joint Bolt Holes0
Number Of Inboard Shaft Bolts0
Number Of Outboard Joint Bolt Holes0
Number Of Outboard Shaft Bolts0
Quantity In Kit2
Inboard Shaft Connection StyleFlange
Outboard Shaft Connection StyleConventional
Tap to zoom1 / 3Swipe
Part # KAB-703521TrakMotive Front CV Axle Assembly Kit - 2 Piece Set
Brand TrakMotiveCondition NewCV Axle Shaft Kit2 pieces24-mo warranty
$30695
$383.95SAVE 20%
Dealer charges $556.73SAVE 45%— You save $249.78
In Stock·10 or more available
QTY
1
FREE
Shipping
Shipping
30-Day
Returns
Returns
24-Mo
Warranty
Warranty
Expert
Support
Support
OE REPLACEMENT
TrakMotive Front CV Axle Assembly Kit - 2 Piece Set
|
Part #:KAB-703521
|
CV Axle Shaft Kit
$306.95In Stock
$383.95Save 20%
Pay in 4 interest-free payments of$76.74withPayPal
Quantity:
1
In Stock·10 or more available
FREE delivery between Fri, Aug 14 to Fri, Aug 14
Ships To:Key Features
OEM-Equivalent QualityMeets/exceeds factory specs
American BusinessMaryland since 1986
24-Month WarrantyLimited coverage on every part
Free Same Day ShippingWe ship all orders the same business day before cutoff
Product HighlightsBeta
Reading the catalog · checking interchanges · researching…
What's included in this CV axle kit?
This kit includes 2 TrakMotive CV axle assemblies for the front of your vehicle. Each axle is a complete assembly with the inner and outer CV joints, boots, and grease pre-installed.
Should I replace CV axles in pairs?
Yes. When one CV axle fails, the other side has the same wear and mileage. Replacing both ensures balanced performance, eliminates a second repair, and saves on labor costs since the work area is already accessible.
How do I know my CV axle needs replacement?
Common symptoms include clicking or popping noises when turning, vibration during acceleration, grease on the inside edge of tires, or visible damage to the CV boot. A torn boot will lead to joint failure if not addressed.
Are TrakMotive CV axles OE quality?
Yes. TrakMotive (formerly SurTrack) CV axles are built to meet or exceed OE specifications. They use premium materials including heat-treated alloy steel, high-temp grease, and thermoplastic boots for long service life.
Can I install CV axles myself?
CV axle replacement is a moderate DIY job. You'll need basic hand tools, a torque wrench, and a jack with stands. The job typically takes 1-2 hours per side. A new axle nut is recommended for each side.
Do I need an alignment after replacing CV axles?
Replacing CV axles alone does not typically require an alignment since the suspension geometry is not disturbed. However, if you disconnect any tie rods or suspension components during the job, an alignment is recommended.
TrakMotive Front CV Axle Assembly Kit - 2 Piece Set
Part # KAB-703521
2 Piece Set
Click to expand
2 Piece Set
1 / 4
$30695
$383.95SAVE 20%
Dealer charges $556.73SAVE 45%— You save $249.78
In Stock·10 or more available
QTY
1
FREE
Shipping
Shipping
30-Day
Returns
Returns
24-Mo
Warranty
Warranty
Expert
Support
Support
OE REPLACEMENT
TrakMotive Front CV Axle Assembly Kit - 2 Piece Set
|
Part #:KAB-703521
|
CV Axle Shaft Kit
$306.95In Stock
$383.95Save 20%
Pay in 4 interest-free payments of$76.74withPayPal
Quantity:
1
In Stock·10 or more available
FREE delivery between Fri, Aug 14 to Fri, Aug 14Ships To:Key Features
OEM-Equivalent QualityMeets/exceeds factory specs
American BusinessMaryland since 1986
24-Month WarrantyLimited coverage on every part
Free Same Day ShippingWe ship all orders the same business day before cutoff
What's included in this CV axle kit?
This kit includes 2 TrakMotive CV axle assemblies for the front of your vehicle. Each axle is a complete assembly with the inner and outer CV joints, boots, and grease pre-installed.
Should I replace CV axles in pairs?
Yes. When one CV axle fails, the other side has the same wear and mileage. Replacing both ensures balanced performance, eliminates a second repair, and saves on labor costs since the work area is already accessible.
How do I know my CV axle needs replacement?
Common symptoms include clicking or popping noises when turning, vibration during acceleration, grease on the inside edge of tires, or visible damage to the CV boot. A torn boot will lead to joint failure if not addressed.
Are TrakMotive CV axles OE quality?
Yes. TrakMotive (formerly SurTrack) CV axles are built to meet or exceed OE specifications. They use premium materials including heat-treated alloy steel, high-temp grease, and thermoplastic boots for long service life.
Can I install CV axles myself?
CV axle replacement is a moderate DIY job. You'll need basic hand tools, a torque wrench, and a jack with stands. The job typically takes 1-2 hours per side. A new axle nut is recommended for each side.
Do I need an alignment after replacing CV axles?
Replacing CV axles alone does not typically require an alignment since the suspension geometry is not disturbed. However, if you disconnect any tie rods or suspension components during the job, an alignment is recommended.
About This CV Axle Shaft Kit
This TrakMotive automotive component is engineered to meet or exceed OEM specifications for reliable performance and long service life.
Key Features
- Meets or exceeds OEM specifications
- Direct-fit replacement design
- Rigorously tested for durability
- Professional-grade construction
- Backed by manufacturer warranty
Signs This Part Needs Replacement
- •Unusual noises from the component area
- •Decreased vehicle performance
- •Warning lights on dashboard
- •Visible wear or damage
- •Failed vehicle inspection
TrakMotive
Trusted Automotive Brand
TrakMotive is a trusted manufacturer of quality automotive parts.
View all TrakMotive productsInstallation Guide
Moderate
1-3 hours
Tools Needed
Basic hand toolsTorque wrenchVehicle service manual
